Automatic filling line Your current location:Home > Automatic filling line >

产品名称:

Features

·The operation is convenient and fast, the brake is stable during the filling process, which prevents the filling gun from touching the barrel mouth, which is more accurate;

·Double-layer large-scale weighing platform, anti-side impact, over-voltage protection, tightly protecting the load cell;

·Filling is prohibited if there is no barrel on the weighing platform, alarm for parameter error, and barrel collision protection;

·The gun is drip-proof, splash-proof, and the operating environment is clean; quick-disconnect joints, easy to disassemble and wash;

·Equipped with gas collection and exhaust interface, which can be connected to recovery devices such as VOC;

·200 groups of formulas can be set and stored, and U disk data storage

·Two filling methods of net weight/gross weight

·Automatic/manual two operation modes

·Each gun feeding fast/medium/slow three-level speed

·Automatic electrical linkage to control the delivery pump and the rear valve

·Modbus TCP, CANOpen, EtherCAT, ProfiBUS and other interfaces can be reserved, and can be connected to ERP and other systems to facilitate remote monitoring and management

产品参数 产品视频 相关产品 联系方式

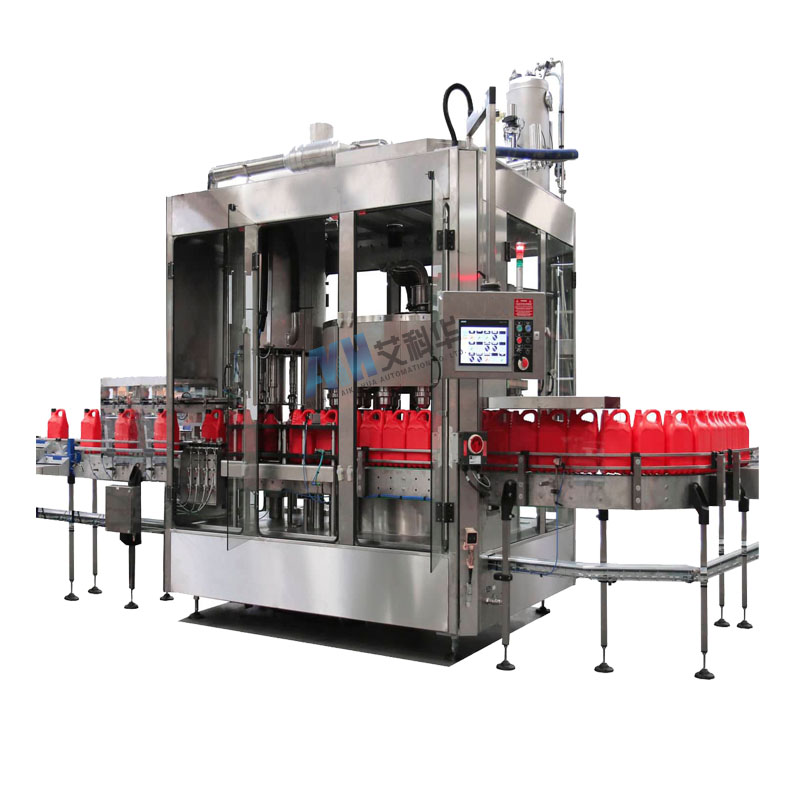

1: 0.3-2L weighing filling production line
Automatic barrel discharge——automatic filling——automatic capping——automatic coding (labeling)——conveying——weight re——inspection——rejection

Parameter:
1. Filling container: various types of 0.3-2L containers (the main components are changed according to the container structure);
2. Bottle feeding method: can be customized as a fully automatic bag feeding method according to needs;
3. The system has automatic alarm and interlocking control;
4. The filling form of the filling machine can be filled with 2-10 guns at the same time;
5. According to the needs of the occasion, the automatic filling line can be designed and manufactured in accordance with the clean room, explosion-proof and other occasions.

2: 0.3-2L weighing filling production line technical parameters:
1. Weighing range: 0.3~2 kg;
2. Weighing accuracy: ≤±0.1%;
3. Production capacity: 1200~3000PCS/h;
4. Power source: 380VAC/220VAC 50HZ, ±10%;
5. Control power supply: 24VDC;
6. Control air source: 0.5~0.8MPa;

3. Equipment features:
1. Few people: the whole line is coordinated and controlled, and only one person is required to operate it.
2. Simple operation: The whole line is humanized design, fool-like operation, simple training can be easily mastered.
3. The structure is very simple, the failure rate is low, and it is easy to maintain and repair;
4. The main components are few and the maintenance cost is very low;
5. Professional control program, key components can perform equipment self-check, alarm output/start;
6. All operations can be done with touch on the screen of the control cabinet, the operation is very simple (upper computer is optional);
7. Abundant network communication connections, optional accessories (CAN bus, LonWorks bus, PROFIBUS bus, Ethernet, etc.) can be used to facilitate the statistical management of factory data.
