产品名称：
Features
·Convenient and quick operation, with automatic roller brake, stable brake during filling process, preventing the filling gun from touching the barrel mouth, which is more accurate;
·Double-layer large-scale weighing platform, anti-side impact, over-voltage protection, tightly protecting the load cell;
·Filling is prohibited if there is no barrel on the weighing platform, alarm for parameter error, and barrel collision protection;
·The gun is drip-proof, splash-proof, and the operating environment is clean; quick-disconnect joints, easy to disassemble and wash;
·Equipped with gas collection and exhaust interface, which can be connected to recovery devices such as VOC;
·200 groups of formulas can be set and stored, and U disk data storage
·Two filling methods of net weight/gross weight
·Automatic/manual two operation modes
·Each gun feeding fast/medium/slow three-level speed
·Automatic electrical linkage to control the delivery pump and the rear valve
·Modbus TCP, CANOpen, EtherCAT, ProfiBUS and other interfaces can be reserved, and can be connected to ERP and other systems to facilitate remote monitoring and management
1: Overview of the process composition

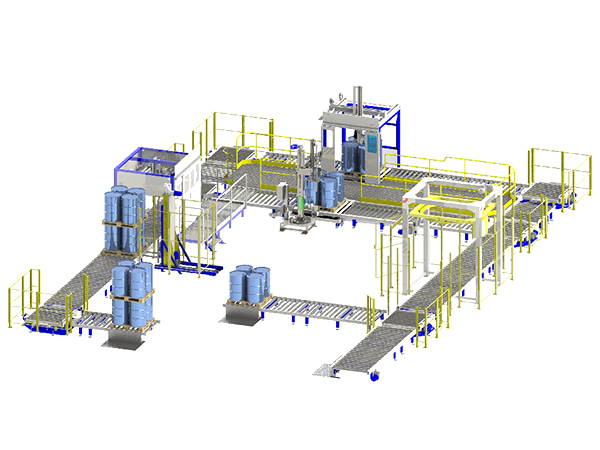

Automatic loading——automatic conveying——automatic positioning——automatic opening——automatic filling-automatic sealing——automatic labeling——automatic pallet loading——automatic stacking and rowing——automatic full barrel conveying
Parameter:
1. Packing barrel: 200L barrel as shown in the figure;
2. Barrel feeding method: can be customized to be fully automatic barrel feeding according to site needs;
3. The system has automatic alarm and interlocking control;
4. According to the nature of the raw materials, the gun tip form of the filling machine can be customized as an inner plug type, an outer plug type, etc.;
5. According to the needs of the occasion, the automatic filling line can be designed and manufactured in accordance with the clean room, explosion-proof and other occasions.
2: Technical parameters of automatic weighing code filling production line:
1. Weighing range: 100～200 kg/barrel;
2. Weighing accuracy: ≤±0.2%;
3. Production capacity: 0～300 barrels/hour (specific reference requirements);
4. Power source: 380VAC/220VAC 50HZ, ±10%;
5. Control power supply: 24VDC;
6. Control air source: 0.5～0.8MPa;
7. Filling gun: Choose different corrosion-resistant materials according to actual raw materials;
8. .Automatically adjust the barrel according to needs, and can adopt mechanical positioning and CCD vision-servo positioning;
9. It can be customized according to site requirements. According to the production site and requirements, the line logistics direction and length can be designed.
3. Equipment features:
1. The structure is very simple, the failure rate is low, and it is easy to maintain and repair;
2. The main components are few and the maintenance cost is very low;
3. Professional control program, key components can perform equipment self-check, alarm output/start;
4. All operations can be done by touching on the screen of the control cabinet, the operation is very simple (upper computer is optional);
5. Abundant network communication connection, optional accessories (CAN bus, LonWorks bus, PROFIBUS bus, Ethernet, etc.) can be used to facilitate the statistical management of factory data.
