The main purpose

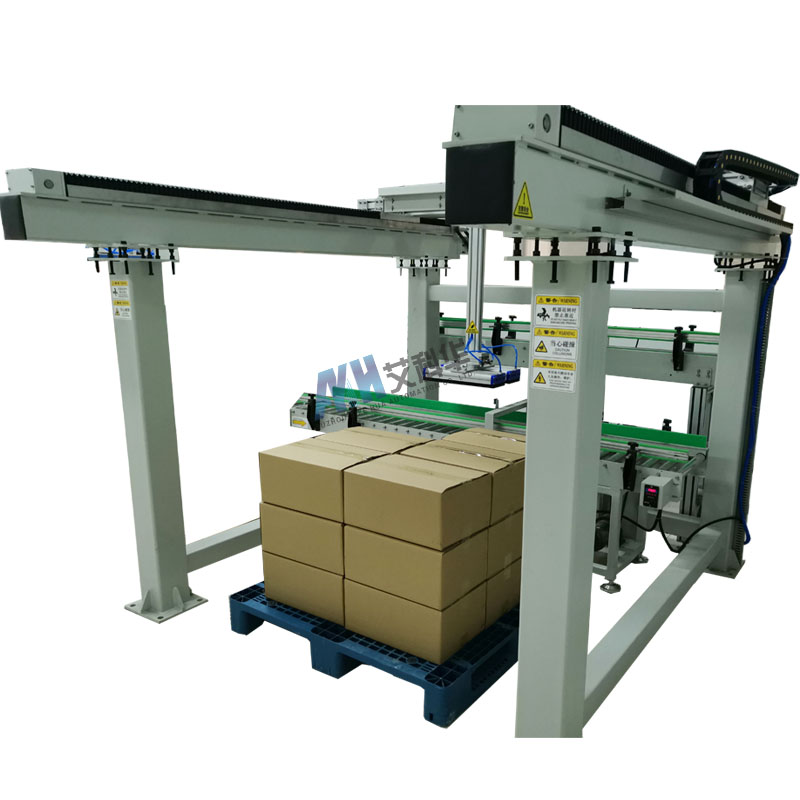

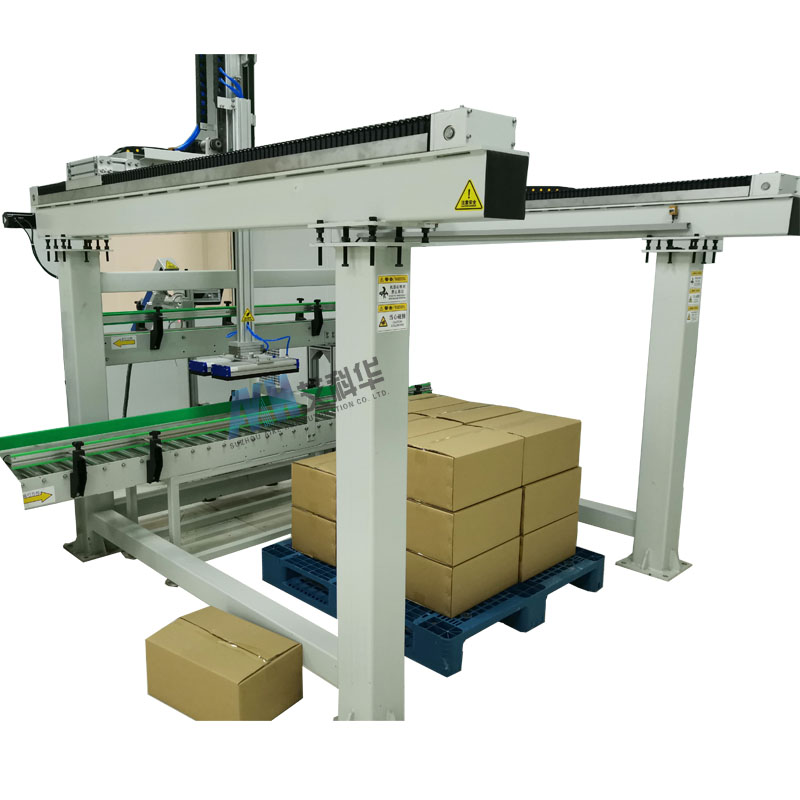

High-position palletizer is a kind of palletizing equipment with high degree of automation and good integration. The palletizer groups the packaging bags in a predetermined manner, and then puts the entire layer of bags on the pallet layer by layer. It is usually used as the follow-up equipment of the packaging line to improve production capacity and transshipment capacity.
★High-position palletizer features:
Using German technology, the failure rate is low; the host is highly integrated; it is driven by a servo motor and geared; the structure is simple and durable; automatic oiling and maintenance; low noise: accurate control, diverse stack types.
1. The structure is very simple, the failure rate is low, and it is easy to maintain and repair;
2. The main engine automatically refuels and maintains;
3. The main machine has three sides, which can be selected as the inlet and outlet at will to adapt to the site;
4. The servo motor controls the bag rotation, positioning, and pallet lifting. It runs smoothly, with high accuracy and low noise. It solves the problem of vibration and impact and no longer uses hydraulic cylinders for lifting;
5. The complete equipment of the high-position palletizer is planned in an effective space, the host is highly integrated, and the efficiency of the site is high;
6. Realize man-machine dialogue, all operations can be done by hand on the control cabinet screen, including setting the stack type, selecting the stack type, and the operation is simple; a variety of stacking options: Wuhuaduo, Liushunduo
7. The stack type and the number of stacking layers can be set arbitrarily, and the stack type is neat, convenient for storage and transportation
8. The palletizing efficiency is high, and one host can be used in two lines;
9. The main engine is highly integrated and integrated, and it is installed as a whole. It is easy to install on site. It can be used when it is connected to the discharge port.
★Parameter:
1. Stacking capacity: 400-600 bags/carton/hour
2. The number of stacking layers: 1~10 layers;
3. Air source: 0.5-0.8Mpa
4. Power supply: 380VAC/220VAC 50HZ, ±10%;
5. Power consumption: 10kw
6. Dimensions: 3400 (length) x 2200 (width) x 3000 (height)
