产品名称：
Features
·Anti-side impact, over-voltage protection, tightly protect the load cell;
·Filling is prohibited if there is no barrel on the weighing platform, alarm for parameter error, and barrel collision protection;
·The gun is drip-proof, splash-proof, and the operating environment is clean; quick-disconnect joints, easy to disassemble and wash;
· Equipped with gas collection and exhaust interface, which can be connected to recovery devices such as VOC;
·200 groups of formulas can be set and stored, and U disk data storage
·Two filling methods of net weight/gross weight
·Automatic/manual two operation modes
·Each gun feeding fast/medium/slow three-level speed
·Automatic electrical linkage to control the delivery pump and the rear valve
·Modbus TCP, CANOpen, EtherCAT, ProfiBUS and other interfaces can be reserved, and can be connected to ERP and other systems to facilitate remote monitoring and management

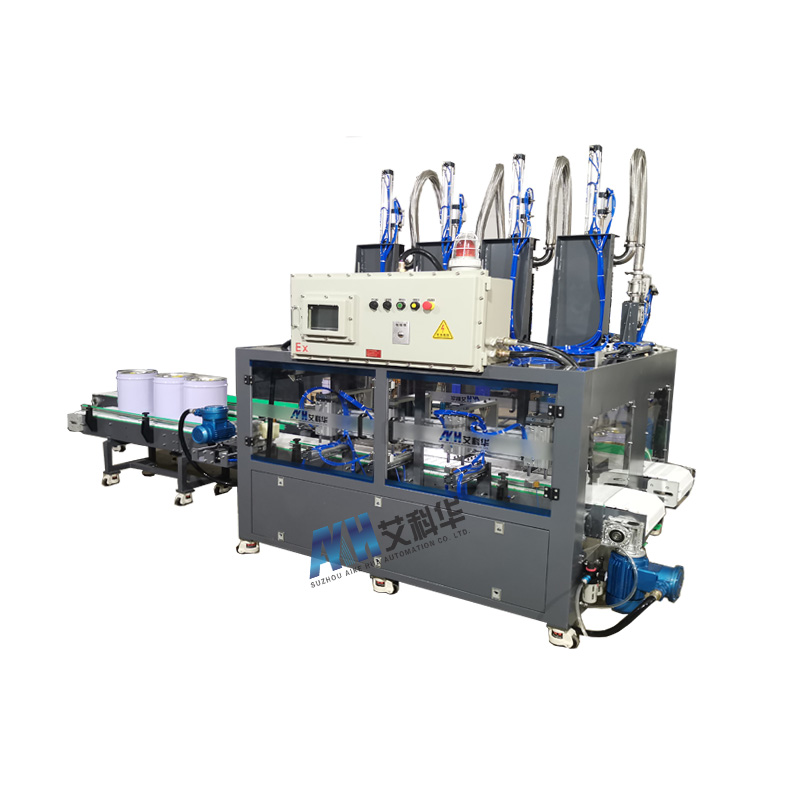

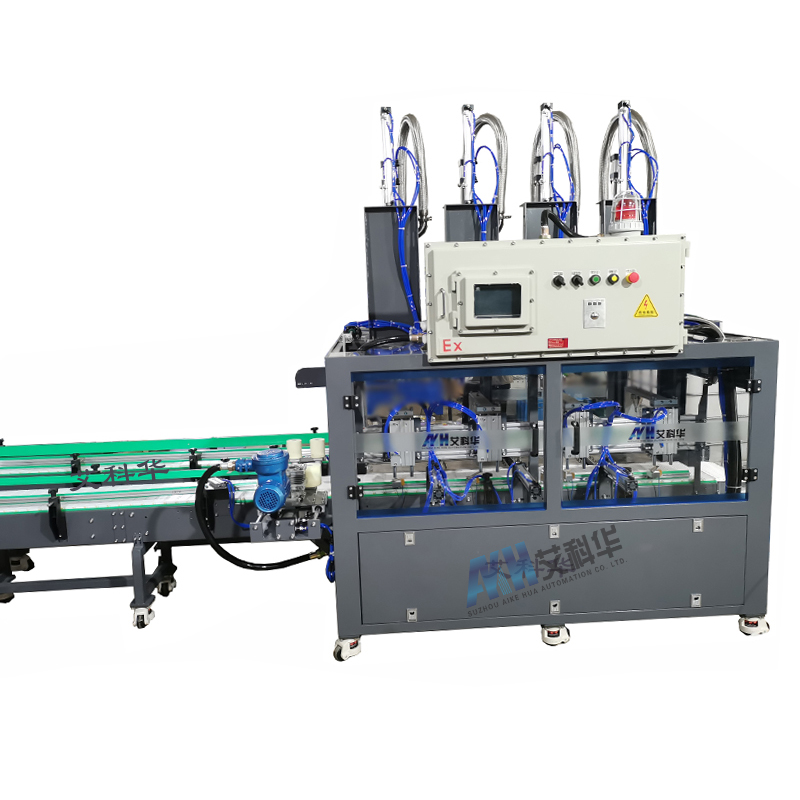

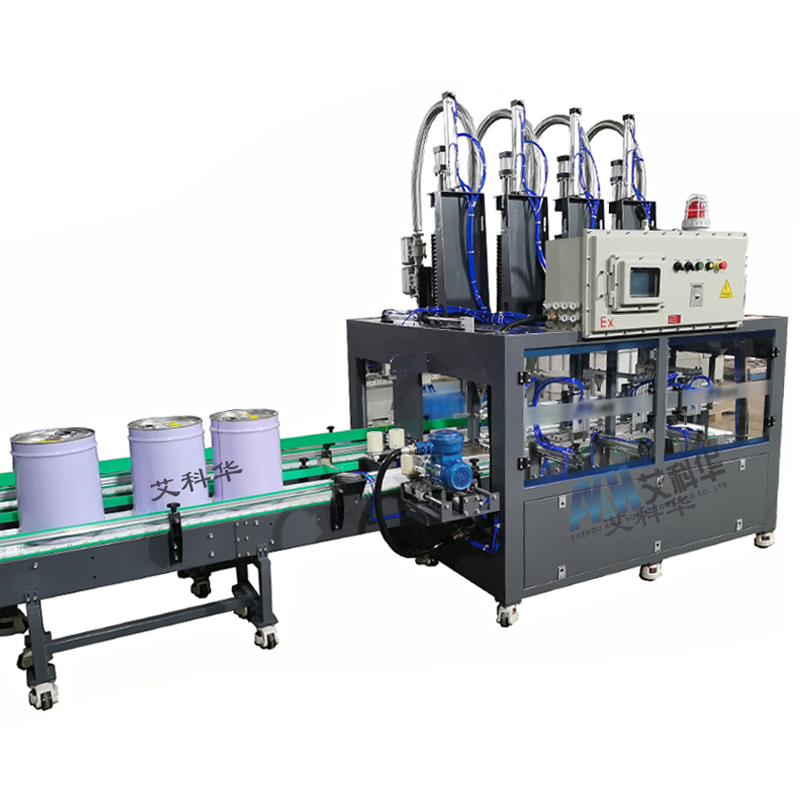

1: 10-30L weighing filling production line
Automatic barrel discharge——automatic search mouth——automatic filling————automatic capping (capping)——automatic coding (labeling)——conveying——weight recheck——reject
2: 10-30L weighing type filling production line technical parameters:
1. Weighing range: 10-50 kg;
2. Weighing accuracy: ≤±0.1%;
3. Production capacity: 400～800PCS/h;
4. Power source: 380VAC/220VAC 50HZ, ±10%;
5. Control power supply: 24VDC;
6. Control air source: 0.5～0.8MPa;
3. Equipment features:
1. Few people: the whole line is coordinated and controlled, and only one person is required to operate it.
2. Simple operation: The whole line is humanized design, fool-like operation, simple training can be easily mastered.
3. The structure is very simple, the failure rate is low, and it is easy to maintain and repair;
4. The main components are few and the maintenance cost is very low;
5. Professional control program, key components can perform equipment self-check, alarm output/start;
6. All operations can be done with touch on the screen of the control cabinet, the operation is very simple (upper computer is optional);
7. Abundant network communication connections, optional accessories (CAN bus, LonWorks bus, PROFIBUS bus, Ethernet, etc.) can be used to facilitate the statistical management of factory data.
